Thread processing is one of the most important applications of cnc machining centers. The quality and efficiency of thread processing will directly affect the processing quality of parts and the production efficiency of machining centers.
With the improvement of the performance of cnc machining centers and the improvement of cutting tools, the method of thread machining is also constantly improving, and the precision and efficiency of thread machining are gradually increasing. In order to enable the craftsman to reasonably select the thread processing method in the processing, improve the production efficiency and avoid the quality accident, several thread processing methods commonly used in the cnc machining center are summarized as follows:
CNC technology | CNC machining center commonly used several thread processing methods
1.1 Classification and characteristics of tap processing
The use of tapped tapped holes is the most common method of machining. It is mainly suitable for threaded holes with small diameters (D<30) and low hole position accuracy requirements.
In the 1980s, the tapped holes were all made by the flexible tapping method, that is, the taps were clamped by the flexible tapping chuck, and the tapping chuck could be used for axial compensation to compensate for the inconsistency caused by the axial feed of the machine tool and the spindle speed. Give the error and ensure the correct pitch. The flexible tapping chuck has a complicated structure, high cost, easy damage, and low processing efficiency. In recent years, the performance of the cnc machining center has gradually improved, and the rigid tapping function has become the basic configuration of the cnc machining center.
Therefore, rigid tapping has become the main method of current thread processing.
That is, the tap is held by a rigid collet chuck, and the spindle feed and the spindle speed are consistently controlled by the machine tool.
Compared with the flexible tapping chuck, the collet chuck has the advantages of simple structure, low price and wide application. In addition to clamping the tap, the cutter such as the end mill and the drill bit can be clamped, which can reduce the tool cost. At the same time, rigid tapping can be used for high-speed cutting, improving the efficiency of machining centers and reducing manufacturing costs.
1.2 Determination of the bottom hole of the thread before tapping
The processing of the threaded bottom hole has a great influence on the life of the tap and the quality of the thread processing. Generally, the diameter of the threaded bottom hole drill is selected to be close to the upper limit of the diameter tolerance of the threaded bottom hole.
For example, the diameter of the bottom hole of the M8 threaded hole is Ф6.7+0.27 mm, and the diameter of the drill is selected to be Ф6.9 mm. In this way, the machining allowance of the tap can be reduced, the load of the tap can be reduced, and the service life of the tap can be improved.
1.3 tap selection
When selecting a tap, first of all, the corresponding tap must be selected according to the material to be processed. The tool company produces different types of taps according to the different materials. Special attention should be paid when selecting.
Because the tap is very sensitive to the material being processed relative to the milling cutter and the file. For example, the processing of aluminum parts by processing taps of cast iron can easily cause the threads to be broken, the buckles and even the taps to be broken, resulting in the scrapping of the workpiece. Secondly, attention should be paid to the difference between the through-hole tap and the blind-hole tap. The leading end of the through-hole tap is long and the chip discharge is the front chip. The leading end of the blind hole is guided short, and the chip removal is the rear chip. The blind hole is machined with a through-hole tap, and the depth of thread processing cannot be guaranteed. Furthermore, if a flexible tapping chuck is used, it should also be noted that the diameter of the tap handle and the width of the square are the same as those of the tapping chuck; the diameter of the taper tap for rigid tapping should be the same as the diameter of the spring collet. In short, only a reasonable selection of taps can ensure smooth processing.
1.4 CNC programming of tap processing
The programming of tap processing is relatively simple. Now the machining center generally solidifies the tapping subroutine, just assign each parameter. However, it should be noted that the numerical control system is different, the subroutine format is different, and the meaning of some parameters is different.
For example, the SIEMEN840C control system has a programming format of G84 X_Y_R2_ R3_R4_R5_R6_R7_R8_R9_R10_R13_. You only need to assign these 12 parameters when programming.
2. Thread milling
2.1 thread milling features

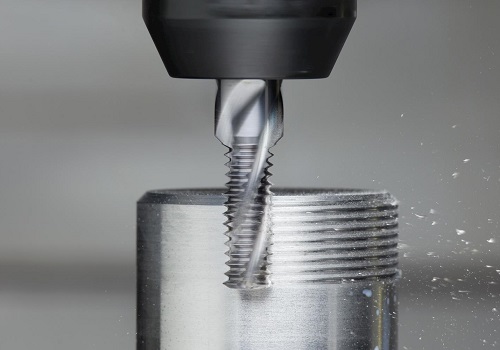

Thread milling is the use of thread milling tools, machining center three-axis linkage, that is, X, Y-axis circular interpolation, Z-axis linear feed milling method for threading.
Thread milling is mainly used for the machining of threaded holes in large-hole threads and difficult-to-machine materials. It mainly has the following characteristics:
(1) Fast processing speed, high efficiency and high processing precision. The tool material is generally a hard alloy material with a fast cutting speed. The precision of the tool is high, so the precision of the thread for milling is high.
(2) Milling tools have a wide range of applications. As long as the pitch is the same, whether it is a left-hand thread or a right-hand thread, a tool can be used, which helps to reduce the tool cost.
(3) Milling is easy to chip and cool, and it has better cutting condition with respect to taps. It is especially suitable for thread processing of difficult-to-machine materials such as aluminum, copper and stainless steel. It is especially suitable for thread processing of parts with large parts and precious materials. Guarantee thread processing quality and workpiece safety.
(4) Because there is no tool leading end guide, it is suitable for processing blind holes with short thread bottom holes and holes without back groove.
2.2 Classification of thread milling tools
There are two types of thread milling tools, one is a machine-clamped carbide insert milling cutter, and the other is a monolithic carbide milling cutter. The machine-clamping tool has a wide range of applications. It can machine holes with a thread depth less than the length of the blade, as well as holes with a thread depth greater than the length of the blade. Integral carbide milling cutters are typically used to machine holes with a thread depth less than the length of the tool.
2.3 CNC programming of thread milling
The programming of thread milling tools is different from the programming of other tools. If the machining program is programmed incorrectly, it is easy to cause tool damage or threading errors. The following points should be noted when compiling:
(1) Firstly, the thread bottom hole should be processed well, and the small diameter hole should be processed by the drill bit. For the larger hole, the boring should be used to ensure the precision of the thread bottom hole.
(2) When the tool is cut in and out, a circular path should be used, usually 1/2 turn for cutting or cutting, and the Z axis should travel 1/2 pitch to ensure the thread shape. The tool radius compensation value should be brought in at this time.
(3) The X and Y axis circular interpolation for one week, the spindle should travel a pitch along the Z axis direction, otherwise, the thread will be buckled.
(4) Specific example program: the diameter of the thread milling cutter is Φ16, the threaded hole is M48×1.5, and the threaded hole depth is 14.
The processing procedure is as follows:
(The thread bottom hole procedure is slightly, the hole should be boring the bottom hole)
G0 G90 G54 X0 Y0
G0 Z10 M3 S1400 M8
G0 Z-14.75 feeds to the deepest part of the thread
G01 G41 X-16 Y0 F2000 moved to the infeed position, adding radius compensation
G03 X24 Y0 Z-14 I20 J0 F500 cut in with 1/2 circle arc cut
G03 X24 Y0 Z0 I-24 J0 F400 cutting the entire thread
G03 X-16 Y0 Z0.75 I-20 J0 F500 cut out with 1/2 circle arc cut out G01 G40 X0 Y0 back to the center, cancel the radius compensation
CNC technology | CNC machining center commonly used several thread processing methods
3. Picking method
3.1 Characteristics of the Picking Method
Large threaded holes can sometimes be encountered on box-type parts. In the absence of taps and thread milling cutters, a lathe-like method can be used.
Install a thread turning tool on the boring bar to boring the thread.
DEYUCNC has processed a number of parts, the thread is M52x1.5, the position is 0.1mm (see Figure 1), because the position requirements are higher, the threaded holes are larger, the tap can not be processed, and there is no thread milling cutter. In the test, the picking method was used to ensure the processing requirements.
3.2 Notes on the Picking Method
(1) After the spindle is started, there should be a delay time to ensure that the spindle reaches the rated speed.
(2) When retracting the tool, if it is a hand-grinding thread cutter, since the tool cannot be sharpened by shaping, the reverse retraction cannot be used. The spindle orientation must be adopted, the tool is moved radially, and then the knife is retracted.
(3) The manufacturing of the shank must be precise, especially the position of the sipe must be consistent. If it is inconsistent, it cannot be processed by multiple shank. Otherwise it will cause chaos.
(4) Even if it is a very thin buckle, it cannot be picked up by a single button. Otherwise, it will cause tooth loss and the surface roughness is poor. At least two knives should be divided.
(5) Low processing efficiency, only applicable to single-piece small batch, special pitch thread and no corresponding tool.
3.3 specific example procedures
N5 G90 G54 G0 X0 Y0
N15 S100 M3 M8
N20 G04 X5 delay, so that the spindle reaches the rated speed
N25 G33 Z-50 K1.5 buckle
N30 M19 spindle orientation
N35 G0 X-2 makes the knife
N40 G0 Z15 retreat
In summary, the cnc machining center processing thread mainly includes tap processing, milling processing and picking method. The tap processing and milling processing are the main processing methods, and the picking method is only a temporary emergency method.
Only when the thread processing method and machining tool are correctly selected can the thread processing efficiency and quality be effectively improved, the use efficiency of the cnc machining center can be improved, and the processing cost can be reduced. Every CNC machining technician should be proficient.
